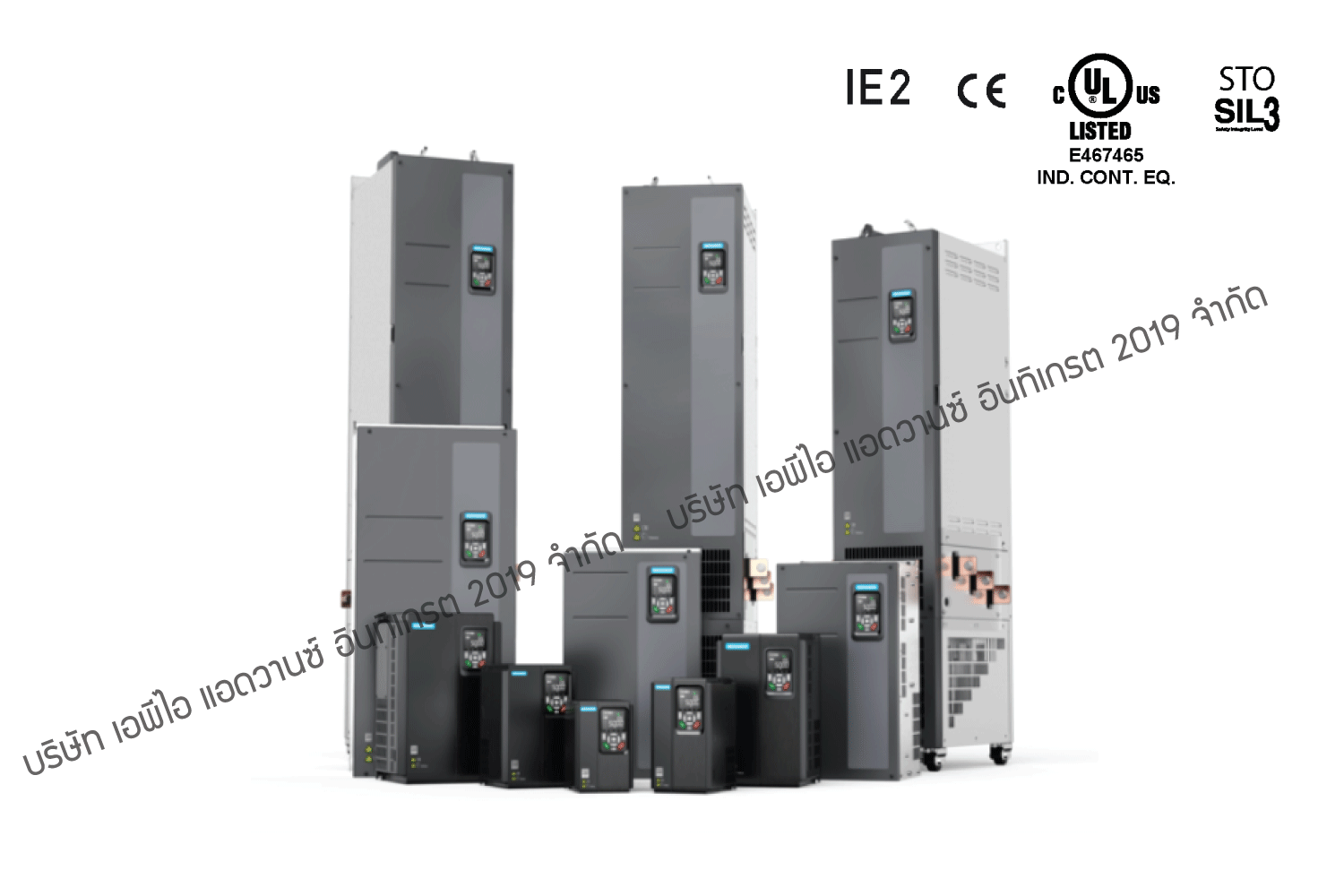

MD520 AC Drive

  • Unified AC asynchronous and PM synchronous motor contro
  • Wide operating voltage and product range:
    • 3 ph 380-480 Vac: 0.4 to 500 kW
    • 3 ph 200-240 Vac: 0.4 to 75 kW
    • 1 ph 200-240 Vac: 0.4 to 2.2 kW
  • STO SIL 3 PL e
  • Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above) complying to IEC 61000-3-1
  • Enhanced reliability: conformal coated PCBs compliant to 3S2 and 3C3 environments
  • Complies to efficiency level IE2 as defined in IEC 61800-9-2
  • Through-hole mounting options (0.4 to 160 kW)
  • Induction motor and PM synchronous motor control:
    • Open loop V/F (induction motors only) and SVC
    • Closed loop FVC
  • Dual rated: heavy duty (overload: 150%/ 1 min) and normal duty (overload: 110%/ 1 min)
  • Starting torque
    • 150% at 0.25 Hz for SVC
    • 180% at 0 Hz for FVC
  • Communication options:
    • Modbus-RTU
    • Modbus-TCP
    • PROFIBUS-DP
    • CANopen
    • CANlink
    • PROFINET
    • EtherCAT
    • Ethernet/IP

  • Category C2 compliance with external RFI filter. Ratings with built-in filter comply with Category C3*1
  • Built-in dynamic braking unit, up to/including 75 kW (400 V) or 37 kW (200 V)
  • Bipolar analog input as standard (-10 to +10 V)
  • PTC input as standard
  • Simplified parameters for easy start up
  • 4 independent S-ramps
  • Flexible programmable I/Os
  • User programmable logic
  • Variable DC-injection braking
  • Comprehensive trip diagnostics
  • Output frequency: 599 Hz
  • Application dedicated functions:
    • Master-slave function (torque, speed)
    • Textile wobble control
  • Brake control logic
  • 4 motor parameter sets
  • Automatic torque boost
  • PC-based software: simplified start up & backup*2
    • *1 For detailed EMC compliance information, consult your local Inovance representative
    • *2 USB to RS485 adapter required. MDKE-10 or SOP-20 keypads can be used for this purpose

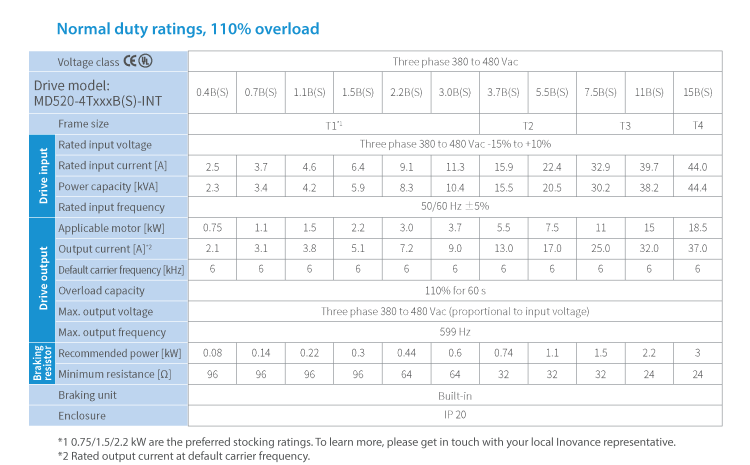

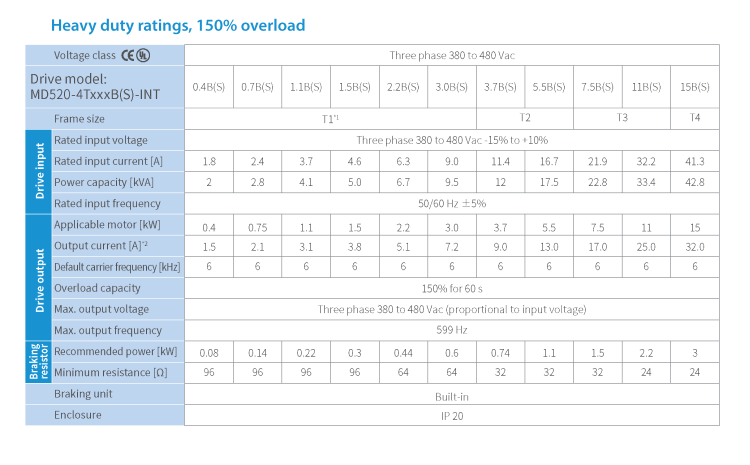

General specifications
